| Main | |
|---|---|
| Inverter | No |
| Capacity (Standard conditions) | |
| Cooling capacity (W) | 10550 |
| Heating capacity (W) | 11700 |
| Recomended area (m2) | 100 |
| Air flow (m3/h) | 800/1260/1600 |
| Energy Consumption | |
| Cooling input power (W) | 3500 |
| Heating input power (W) | 3240 |
| EER | 3.01 |
| Energy Label | C |
| Power supply (v) | 380 |
| Comfort options | |
| Sound pressure (dB) | 40 |
| Sound pressure of outdoor unit (dB) | 58 |
| Daily timer | Yes |
| Weekly timer | No |
| Remote control backlight | No |
| Modes and equipment | |
| Activity sensor | No |
| Filter system | Basic |
| Wi-Fi | Optional |
| Operation range (0C) | -15 |
| Fan speed | 3 |
| Manufacturing | |
| Country of production | China |
| Manufacturer | AUX |
| Extras | |
| Warranty | 3 years |
| Technical values | |
| Piping connection (gas) | 5/8" |
| Piping connection (liquid) | 3/8" |
| Refrigerant | R410 |
| Piping max length (m) | 50 |
| Piping max elevation (m) | 20 |
| Measurements | |
| Indoor unit dimension (mm) | 1280*690*235 |
| Indoor unit weight (kg) | 36 |
| Outdoor unit dimension (mm) | 970*805*395 |
| Outdoor unit weight (kg) | 64 |
Air filter included;
The possibility of installing an additional filter;
Possibility of fresh air mixing;
Drainage outlet from two sides: left/right;
Flexible installation, precise tilt angle adjustment for easier drainage;
Increased fire safety. Metal housing panel and control board box;
Isolation of the main electronic components;
Innovative fan design with low noise;
Quick cleaning thanks to the easy-to-assemble housing;
Increased length of trails up to 50m;
Wide operating temperature range from -15°C to +49°C;
Self-diagnosis;
Autorestart;
Wi-Fi (optional);
Wired remote control (optional);
Cooling at -30 with winter kit (optional).

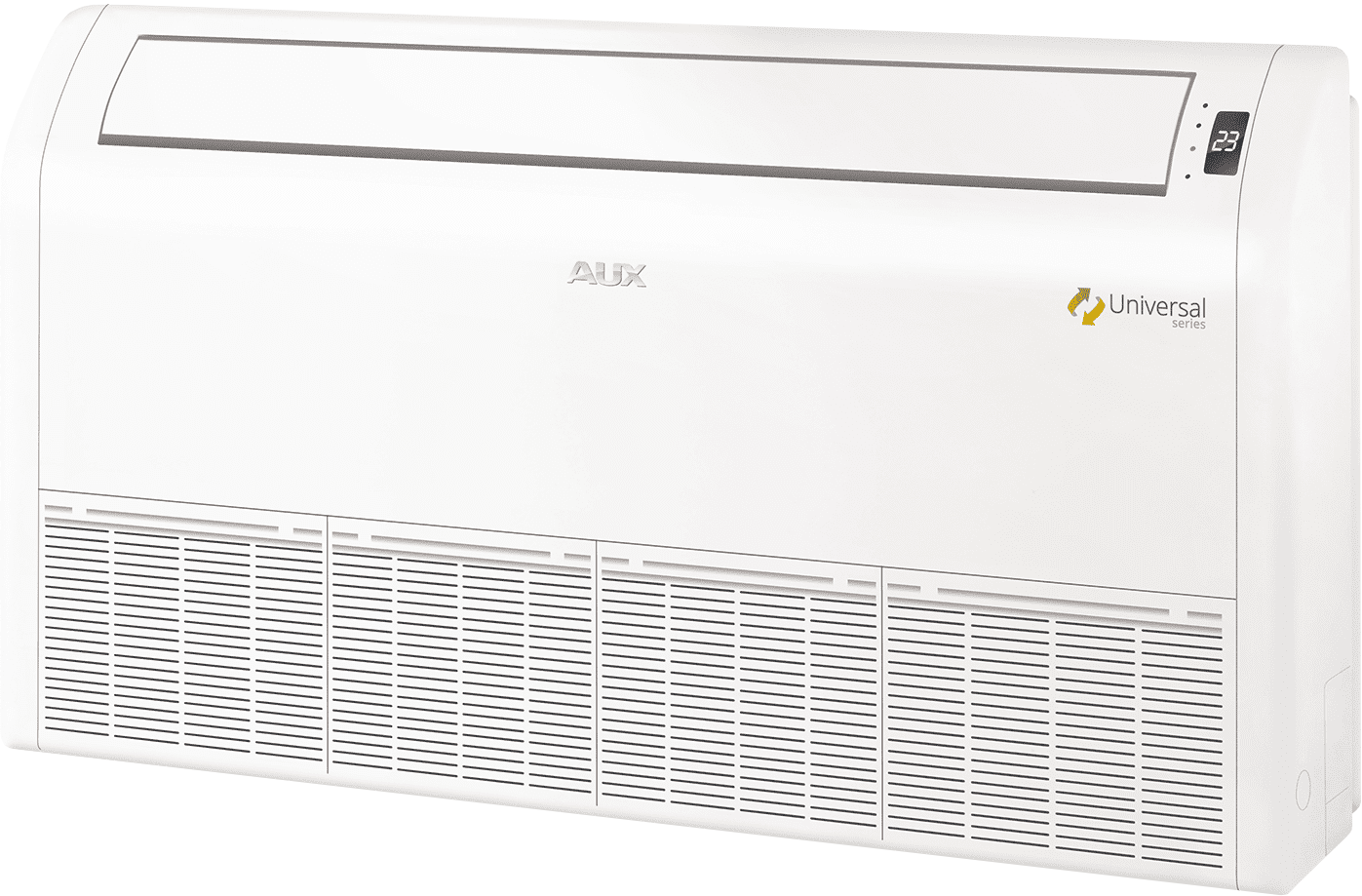

The models of AUX series Floor-ceiling On-Off units provide high-quality and uniform air circulation. By giving preference to such units, you gain a comfortable microclimate, ease of operation, and ease of installation and operation. A powerful jet of cooled air is directed along the wall or ceiling, which avoids direct air flow to the user, as well as evenly changing the air temperature in the room.
